Understanding iOS Versioning

Enabling Version Management

In order to manage build and version numbers with Appcircle, two requirements must be met:

  • The build's Version Management toggle must be turned on and required input values must be entered.

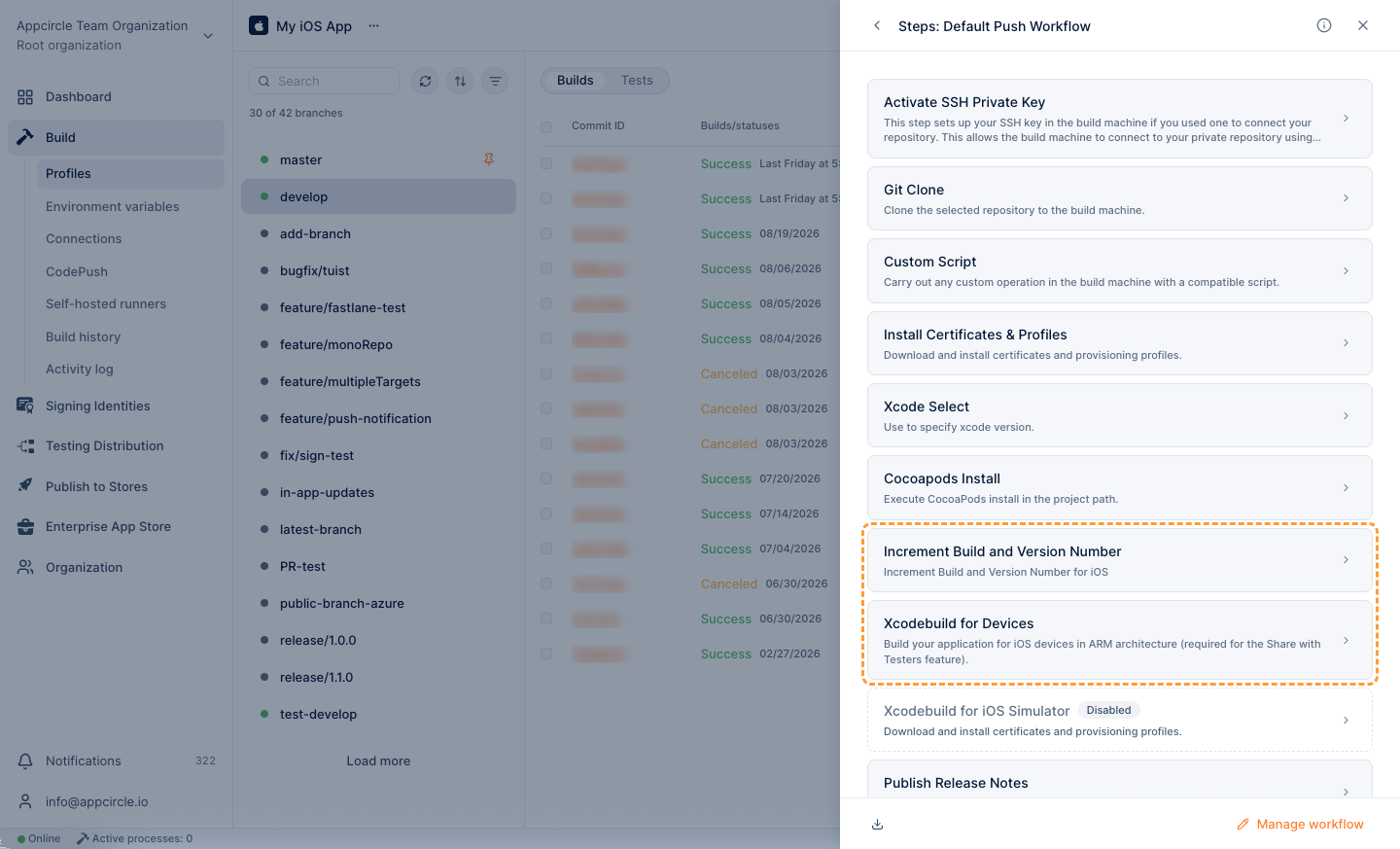

  • Increment Build and Version Number component 2.0.* or higher must be in your workflow.

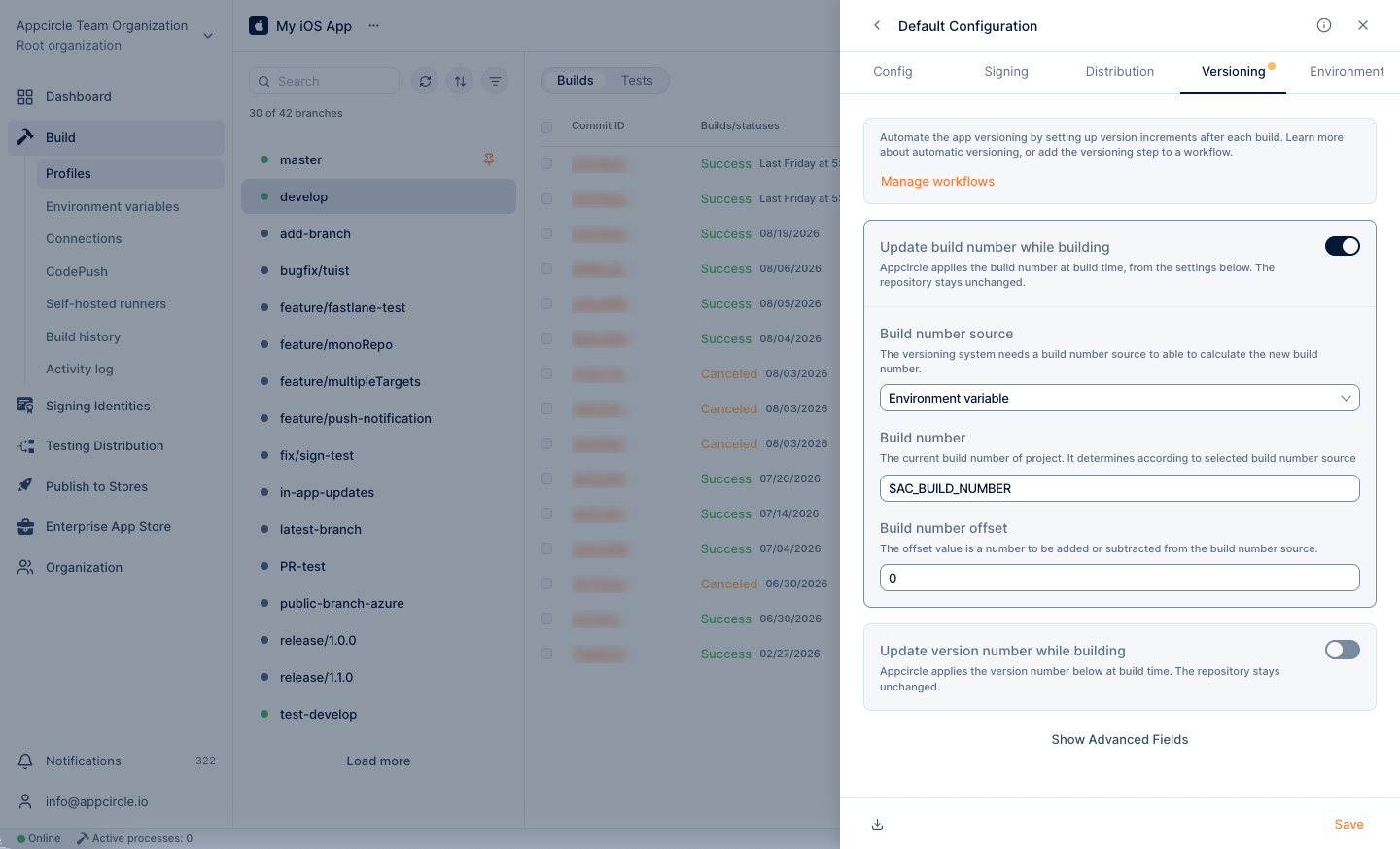

The Versioning tab manages the input values of the component. It is not recommended to change the values of the component with the workflow editor. Instead, it would be best if you always used the Versioning UI to manage the settings.

Managing Build Number

The versioning system needs a build number source and an offset to calculate the new build number. There are two source types for the build number.

Build Number Source

  • Environment Variable
  • Xcode

If you select Environment Variable, you need to write the source environment variable into Build Number. The default value for this input is $AC_BUILD_NUMBER. This variable increases after every build. You can also use other environment variables that you create or select from the config screen. Environment variables must start with the $ sign.

If you select Xcode, the build number will be read from the given Xcode project. Archive configuration and the first app target will be used to read that value from the plist file. If you want to use different configurations or targets, please set them in the Advanced Settings section.

Offset

If you select $AC_BUILD_NUMBER as your build number source, the build number in your project can be different. To synchronize build numbers, you can use the offset. The offset value is a number to be added or subtracted from the Build Number Source. Negative values can be written such as -10.

Managing Version Number

The versioning system needs a version number source and an offset to calculate the new version number. There are three source types for the build number.

Version Number Source

  • Environment Variable
  • Xcode
  • App Store

If you select Environment Variable, you need to write the source environment variable into Version Number You can use any environment variable that you create or select from the config screen. Environment variables must start with the $ sign.

If you select Xcode, the version number will be read from the given Xcode project. Archive configuration and the first app target will be used to read that value from the plist file. If you want to use different configurations or targets, please set them with Advanced settings.

The App Store option allows you to get the version number from the App Store directly. If you select App Store, the bundle id of your application must be entered. If your app is only available in selected countries, you must also enter an optional country code, ex: us

Please be aware that selecting this option is not a foolproof method. App Store endpoint may not be available during your build due to network issues or App Store instabilities.

Offset

To synchronize version numbers, you can use the offset. The offset value is a number to be added or subtracted from the Version Number Source. Negative values can be written such as -10.

Increment

You can increase the major, minor, or patch value of the build number. For version number 2.5.1, values can be summarized below.

PartValue
Major2
Minor5
Patch1

Omit Zero Patch Version

If true, omits zero in the patch version. So 42.10.0 will become 42.10 and 42.10.1 will remain 42.10.1. The default is false.

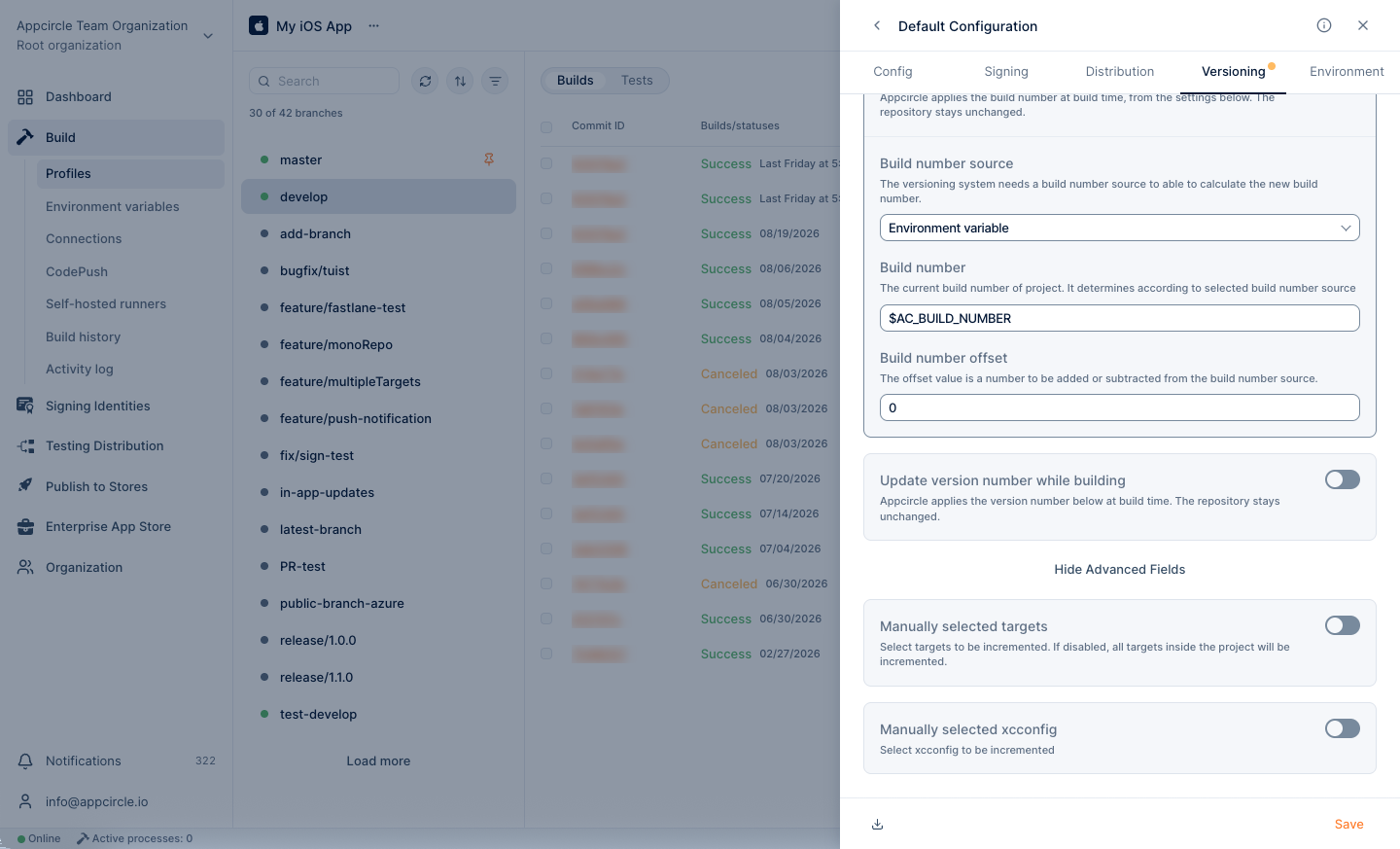

Advanced Settings

This component updates all runnable targets. If you only want to update selected targets, enable the MANUALLY SELECTED TARGETS option and write the targets' names.

The versioning system will update the project's build or version number according to the target's release configuration. If you want to use another xcconfig please enable the MANUALLY SELECTED XCCONFIG toggle and write the name of the xcconfig.

Output Values

After the build or version number update, new values will be written to two environment variables.

ValueExplanation
$AC_IOS_NEW_BUILD_NUMBERChanged build number
$AC_IOS_NEW_VERSION_NUMBERChanged version number

You can use the above values in the remaining steps of your workflow.

Input Variables

The versioning system works by consuming environment variables. Even though it's easier to configure it by using UI, sometimes you may want to change them on the fly. Your commit messages or tags can be used to override those settings. The name of the variables and expected values can be found below.

Variable NameDescriptionStatus
$AC_REPOSITORY_DIRThis variable represents the path of the cloned Git repository. If it runs after the Git Clone step, the variable will be automatically populated.Required
$AC_PROJECT_PATHSpecifies the project path. For example: ./appcircle.xcodeproj.Required
$AC_SCHEMESpecifies the project scheme for the build.Required
$AC_BUILD_NUMBER_SOURCEBuild number source type(env variable or Xcode).Optional
$AC_IOS_BUILD_NUMBERBuild number. The default variable is $AC_BUILD_NUMBER.Optional
$AC_BUILD_OFFSETBuild incremeent offset.Optional
$AC_VERSION_NUMBER_SOURCEVersion number source type(env variable, Xcode or App Store).Optional
$AC_IOS_VERSION_NUMBERVersion number.Optional
$AC_VERSION_STRATEGYVersion increment strategy major, minor, patch, or keep. The default variable is keepOptional
$AC_VERSION_OFFSETThe number to be added or subtracted from the version number. Negative values can be written such as -10. The default variable is 0.Optional
$AC_OMIT_ZERO_PATCH_VERSIONIf true omits zero in patch version (so 42.10.0 will become 42.10 and 42.10.1 will remain 42.10.1), default is false.Optional
$AC_BUNDLE_IDIf the build number source is appstore, this variable should have the bundle id of your application.Optional
$AC_APPSTORE_COUNTRYIf the build number source is appstore, optional two letter country code.Optional
$AC_TARGETSName of the targets to update. You can separate multiple targets by the pipe symbol. If you don't specify any target, all runnable targets will be updated.Optional
$AC_IOS_CONFIGURATION_NAMEThe build configuration to use. If you don't specify any configuration, the target's archive configuration will be used.Optional

Since you can use any environment variables for the build and version numbers, you can consume Appcircle's various environment variables during the build. Appcircle gives plenty of information related to your repo and project.

Let's see a couple of ways to utilize those values.

Output Values

After the build or version number update, new values will be written to two environment variables.

ValueExplanation
$AC_IOS_NEW_BUILD_NUMBERChanged build number
$AC_IOS_NEW_VERSION_NUMBERChanged version number

You can use the above values in the remaining steps of your workflow.

Using Commit Messages

We can extract the commit message and set the version number from the message. Commit message is stored inside $AC_COMMIT_MESSAGE. Let's say we want to use the version number from the commit message. Let's assume that the commit message is [VERSION] 1.2.3 Since we will use a calculated value, we have to change our $AC_VERSION_NUMBER_SOURCE as well. We also set the offset value as 0 so that the calculated value can be applied directly. We can use the following custom script to extract this information.

commit_message = ENV['AC_COMMIT_MESSAGE']
# extract commit message with regex
version = commit_message.match(/\[VERSION\] (.*)/)
if version
version = version[1]
open(ENV['AC_ENV_FILE_PATH'], 'a') { |f|
f.puts "AC_VERSION_NUMBER_SOURCE=env"
f.puts "AC_VERSION_OFFSET=0"
f.puts "AC_IOS_VERSION_NUMBER=#{version}"
}
end

Just add this script as a custom script above the Increment iOS Version Component. The type of the script must be set as ruby.

Using Tags

It is also possible to extract the version number from the Git tags. The following example assumes that the commit has a single tag. If you tag your version with release-1.2.3, the following script will extract the version number from the tag.

commit_message = ENV['AC_COMMIT_TAGS']
version = commit_message.match(/release-(.*)/)
if version
version = version[1]
open(ENV['AC_ENV_FILE_PATH'], 'a') { |f|
f.puts "AC_VERSION_NUMBER_SOURCE=env"
f.puts "AC_VERSION_OFFSET=0"
f.puts "AC_IOS_VERSION_NUMBER=#{version}"
}
end

Versioning Playground

You can use the below playground to test the effect of different options

UPDATE BUILD NUMBER WHILE BUILDING

Appcircle will apply the build number while building based on your settings below.

UPDATE VERSION NUMBER WHILE BUILDING

Appcircle will apply the version number while building based on your settings below.
