Carthage is a dependency manager for Swift and Objective-C applications. Carthage handles the installation of external libraries your application depends on during a build.

Carthage is widely used among iOS developers for dependency management, and it's very easy to include it in your iOS projects with Appcircle.


Appcircle will look for a Cartfile file in your repository and use it to install the dependencies. For this reason, it should be used after the Git Clone step.

Prerequisite Workflow StepDescription
Git CloneThis step clones your git repo on the runner where the build process will take place so that the necessary workflow operations can be performed.

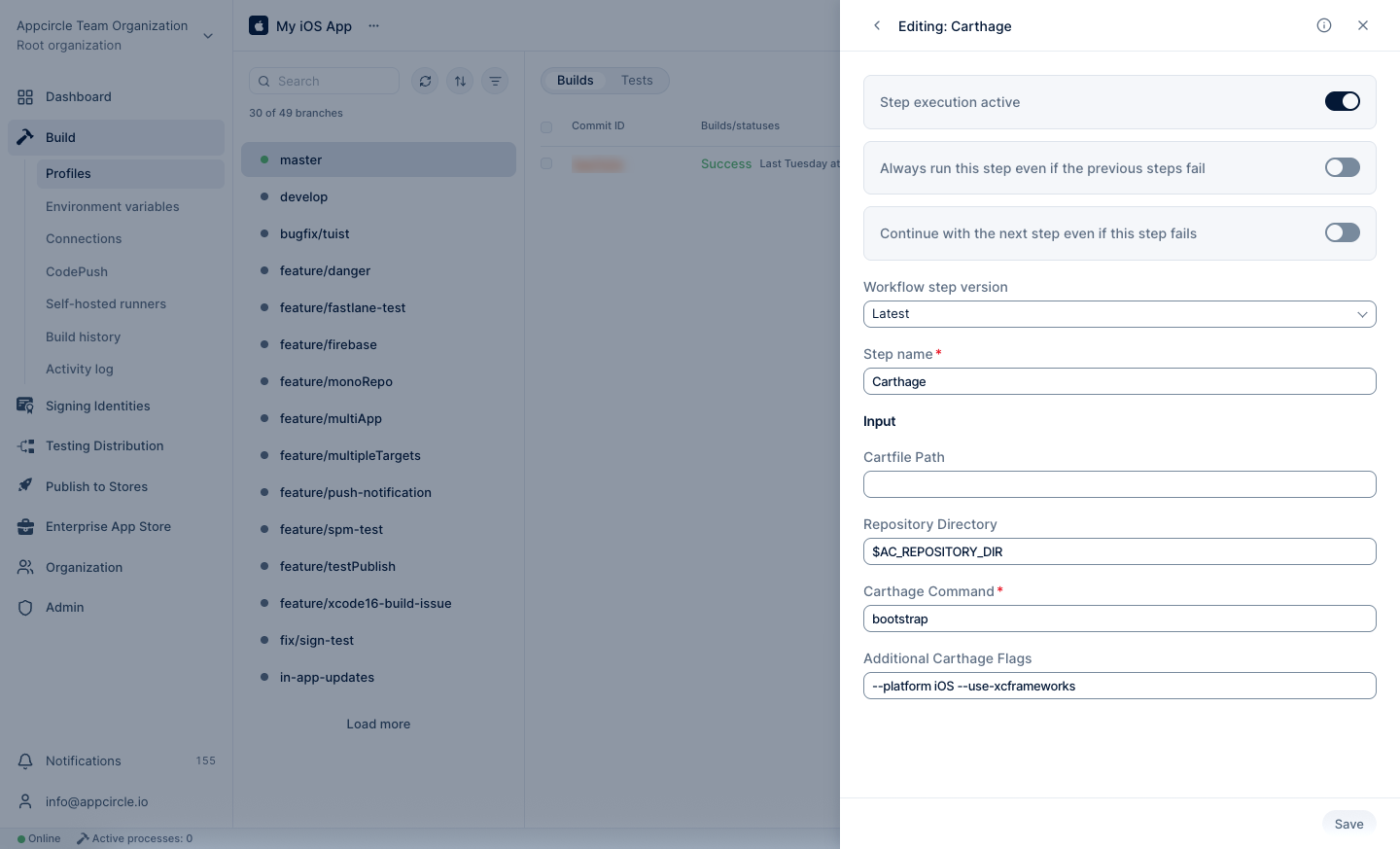

Input Variables

You can find all the parameters required for this step in the table below, with their descriptions in detail.

Variable NameDescriptionStatus
$AC_CARTHAGE_COMMANDSpecifies the Carthage command to run. Defaults to bootstrap. Possible values: bootstrap, updateRequired
$AC_REPOSITORY_DIRSpecifies the cloned repository directory. This path will be generated after Git Clone.Optional
$AC_CARTFILE_PATHSpecifies the path where the Cartfile resides. Defaults to the repository directory. DO NOT include Cartfile, this is only the path. This value will be appended to AC_REPOSITORY_DIR. Example: ./ or ./subpath-to-cartfile/Optional
$AC_CARTHAGE_FLAGSSpecifies additional flags after the Carthage command. The default value is empty. For Xcode 12 and above, make sure to include --use-xcframeworks here. To shorten the build time, make sure to specify the platform: --platform iOS. Example usage: --platform iOS --use-xcframeworksOptional

To access the source code of this component, please use the following link:

Preview of GitHub - appcircleio/appcircle-carthage-component
