Firebase Upload dSYM

This step allows to upload your debug symbols to Firebase Crashlytics.


The workflow steps that need to be executed before running the Firebase Upload dSYM workflow step, along with their respective reasons, are listed in the table below.

Prerequisite Workflow StepDescription

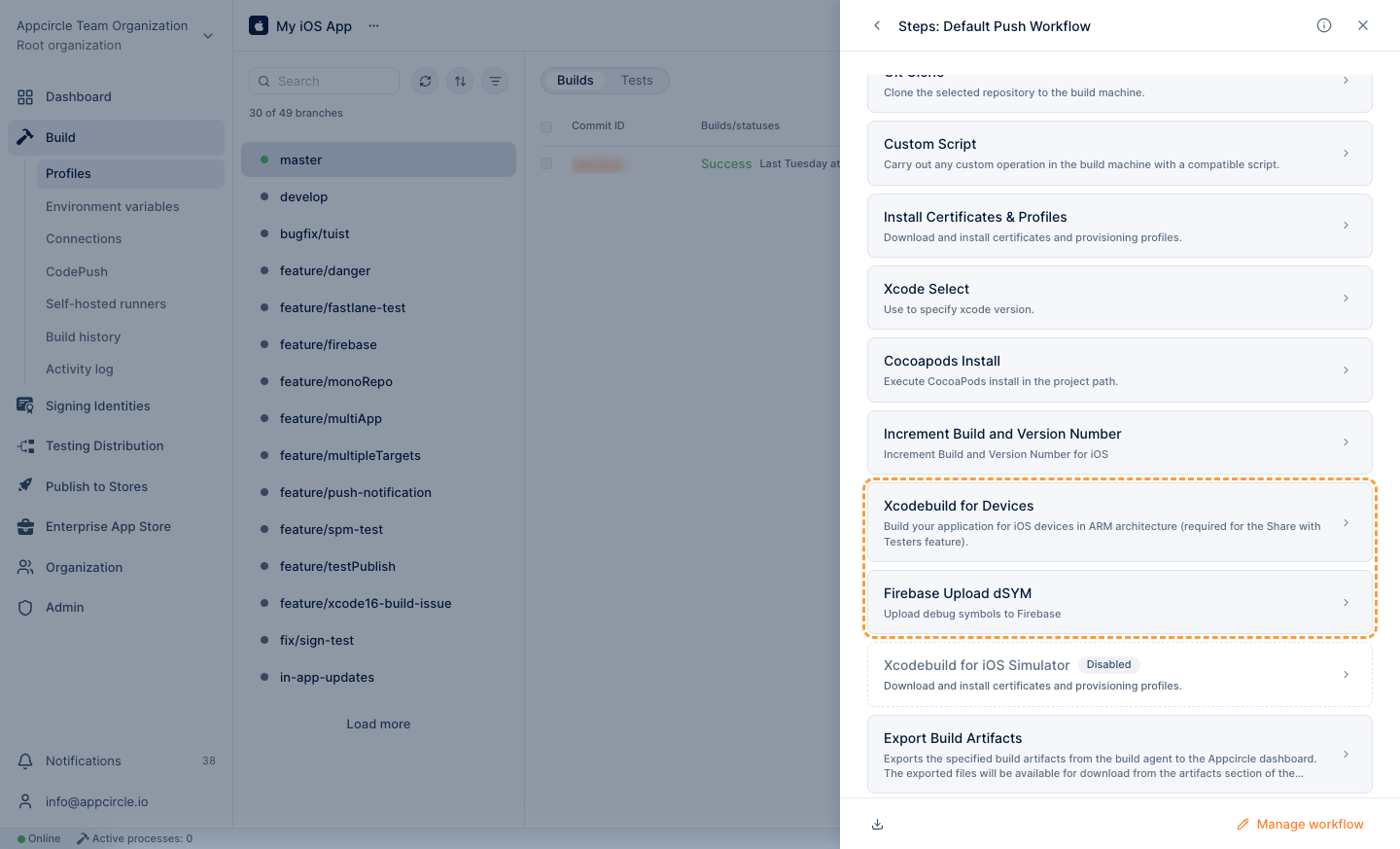

Xcodebuild for DevicesThis step will build your application, create an Archive file, and generate .ipa. The Archive file contains the .dSYM file. Please use Firebase Upload dSYM step after this step.

If this step is not used after Xcodebuild for Devices, the pipeline will give error. Because the dSYM file is generated after the project is archived.

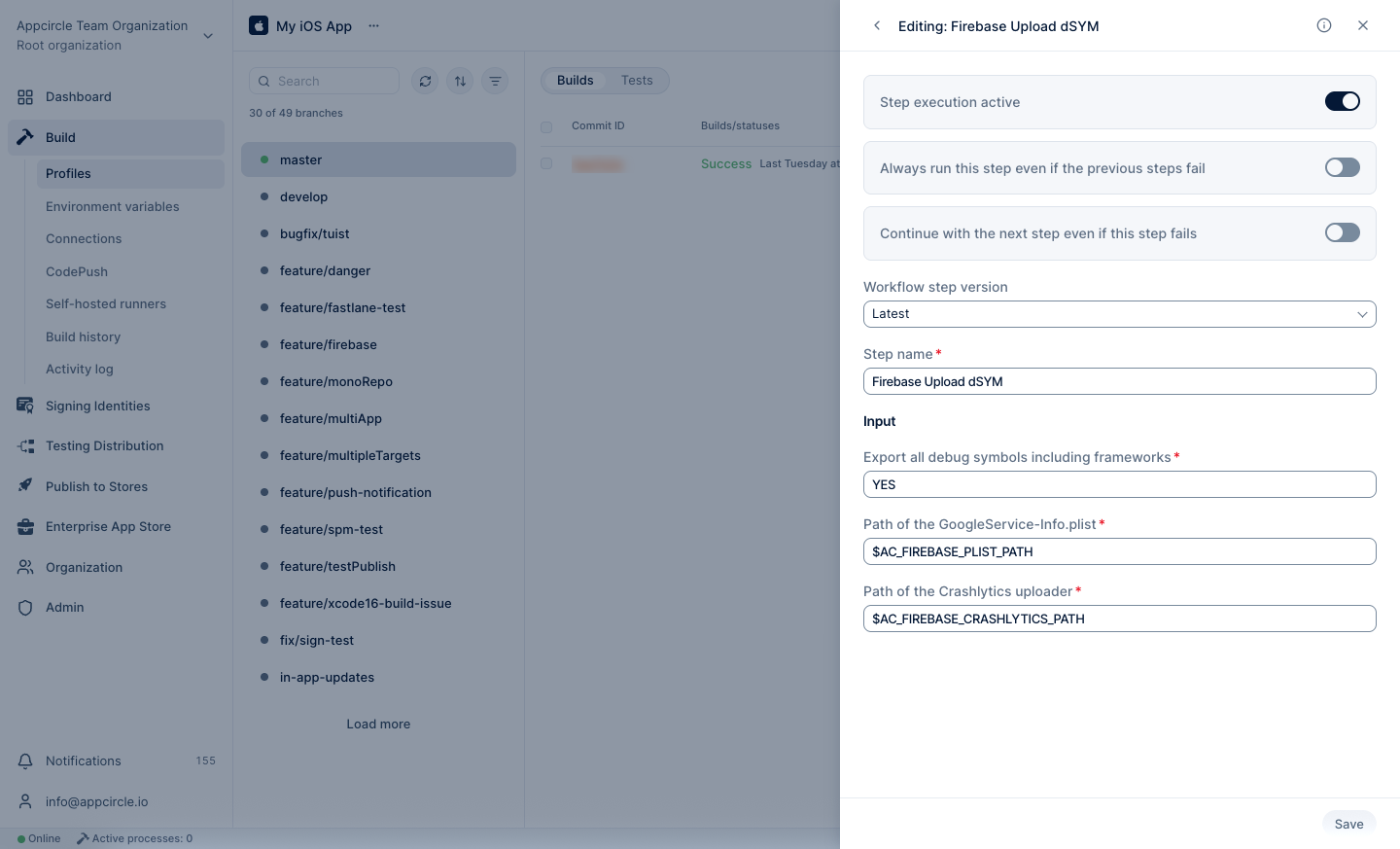

Input Variables

You can find all the parameters required for this step in the table below with their descriptions in detail.

Variable NameDescriptionStatus
$AC_FIREBASE_PLIST_PATHThe path of the GoogleService-InfoPlist file must be defined. In the project, wherever your GoogleService-InfoPlist file is, type that path directly without any characters at the beginning. Appcircle will automatically fill the beginning of the path with the repository path. For example, GoogleService-InfoPlist or services/GoogleService-InfoPlist.Required
$AC_FIREBASE_CRASHLYTICS_PATHThis path parameter specifies the path of the generated dSYM file.Required

Crashlytics paths change depending on the platform. According to the mobile application platform you are working on, you need to provide one of the following paths here.

Project TypeCrashlytics Paths for Platforms
Native iOS CocoaPods$AC_REPOSITORY_DIR/Pods/FirebaseCrashlytics/upload-symbols
Native iOS SPM$HOME/Library/Developer/Xcode/DerivedData/**/SourcePackages/checkouts/firebase-ios-sdk/Crashlytics/upload-symbols
React Native iOS$AC_REPOSITORY_DIR/ios/Pods/FirebaseCrashlytics/upload-symbols
Flutter iOS$AC_REPOSITORY_DIR/ios/Pods/FirebaseCrashlytics/upload-symbols

To access the source code of this component, please use the following link:

Preview of GitHub - appcircleio/appcircle-firebase-dsym-upload-component
